| Item: |

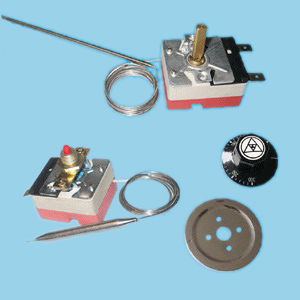

TT-1200 |
| Spec: |
|
| Note: |
¡ùKSD301-23A
|
|
|
|
¡ùWorking Principle:
Being used the bimetal disc as temperature response element. It will be deformed when the bimetal disc reach a definite temperature. The snap action of bimetal disc can separate the contactor quickly and cut off the power to protect the appliances or electrical equipments. thermostat, programmable thermostat.
¡ùUsing Range:
This type thermostat is widely applied to temperature controlling and overheating protection in Water Heater, Welding Machine, Welder, Home Laundry and other limit application.
¡ùSpecification:
Electrical Ratings: AC250V /400V------- 15A/40A/60A
Circuit Control Mode: NC/NO (Automatic Resetting)
Rated Action Temperature: 45ºC---220 ºC (Designed by user's requirements)
Open Tolerance: ¡À2 ºC, ¡À3 ºC, ¡À5 ºC
Open & Close Tolerance: 5 ºC -60 ºC
Close Tolerance: ¡À5ºC, ¡À10 ºC
Action Cycle: No less than 50,000 times
Normal Electric Strength: Not Broken within 2000V / 1 minute, No flash.
Normal Isolated Resistance: >100M ¦¸
thermostat, programmable thermostat

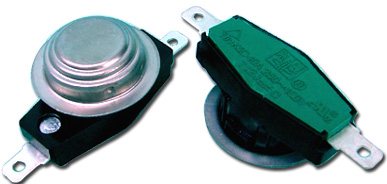

¡ùKSD301-20B
¡ùWorking Principle:
Being used the bimetal disc as temperature response element. It will be deformed when the bimetal disc reach a definite temperature. The snap action of bimetal disc can separate the contactor quickly and cut off the power to protect the appliances or electrical equipments.
¡ùUsing Range:
This type thermostat is widely applied to temperature controlling and overheating protection in Welding Machine, Welder, Water Heater, Home Laundry and other limit application. thermostat, programmable thermostat
¡ùSpecification:
Electrical Ratings: AC250V /400V------- 15A/40A/60A
Circuit Control Mode: NC/NO (Automatic Resetting)
Rated Action Temperature: 45 ºC ---220 ºC (Designed by user's requirements)
Open Tolerance: ¡À2 ºC, ¡À3 ºC, ¡À4 ºC, ¡À5 ºC
Open & Close Tolerance: 5 ºC -60ºC
Close Tolerance: ¡À5ºC, ¡À10 ºC
Action Cycle: No less than 50,000 times
Normal Electric Strength: Not Broken within 2000V / 1 minute, No flash |
|
